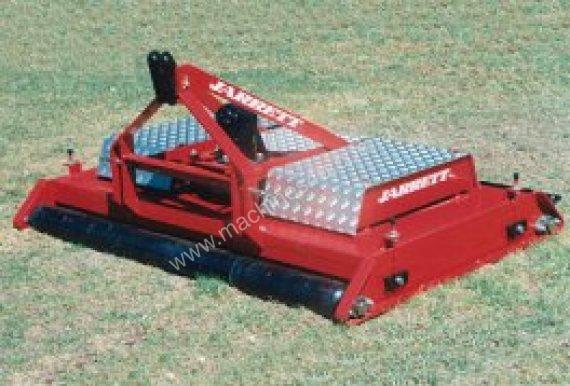

Jarrett TM Series – Single Deck Finishing Mowers

DANDENONG, VIC

General construction
RHS chassis fully welded and capped
8mm steel spindle mounting plates
Spindle plates mounted between RHS chassis
A-frame bolted to main deck
Clean deck design for easy cleaning
Safety covers in heavy-duty Aluminium tread plate
Front and rear steel deflector plates
Pulleys
4-groove cast iron
One pulley suits all spindles
Tapered spline lock mounting to spindle shaft
Machined deep groove, ‘B’ section belt profile
Twin belt drive to each spindle
Large wrap-around belt surface contact for superior grip and drive

Idler pulleys
Large diameter fabricated steel pulley
Sealed bearings
Rubber torsion block mounting for constant belt tension

Spindles
Manufactured in Australia
Sealed oil bath lubrication for min maint
Precision machined heavy-duty cast iron housings
Internally mounted oil seals
Heavy-duty 6308 ball bearings
Precision machined 40mm dia ‘Duraflex’ shaft
Front & rear steel deflector plates
Tapered spline shaft for pulley and cutter base

Cutter heads
Tapered spline lock mounting to spindle shaft
Std 4mm finishing tip blades
Optional 7mm pasture blades for most models
Quick & easy to change blade types
More flexibility for varying conditions
High tip speed ensures superior cut

Belts
Twin ‘B’ section belts
Quick & easy belt replacement
Single-point tensioning (main deck)
Rubber torsion block tensioning (wings)

Options
Solid rubber rear wheel kit

Specifications

Model Width Weight GBox Min pwr Rollers
TM182 1.8 m 540 kg 75 hp 40 hp Full width, front & rear
TM232 2.3 m 650 kg 75 hp 45 hp Full width, front & rear
TM302 3.0 m 800 kg 75 hp 50 hp Full width, front & rear
