Seppi SMWA multipla

DANDENONG, VIC

Flail mulcher for large areas 80-150 HP
Mulcher for large areas!
Mulches up to 6 meters [236"] in one pass

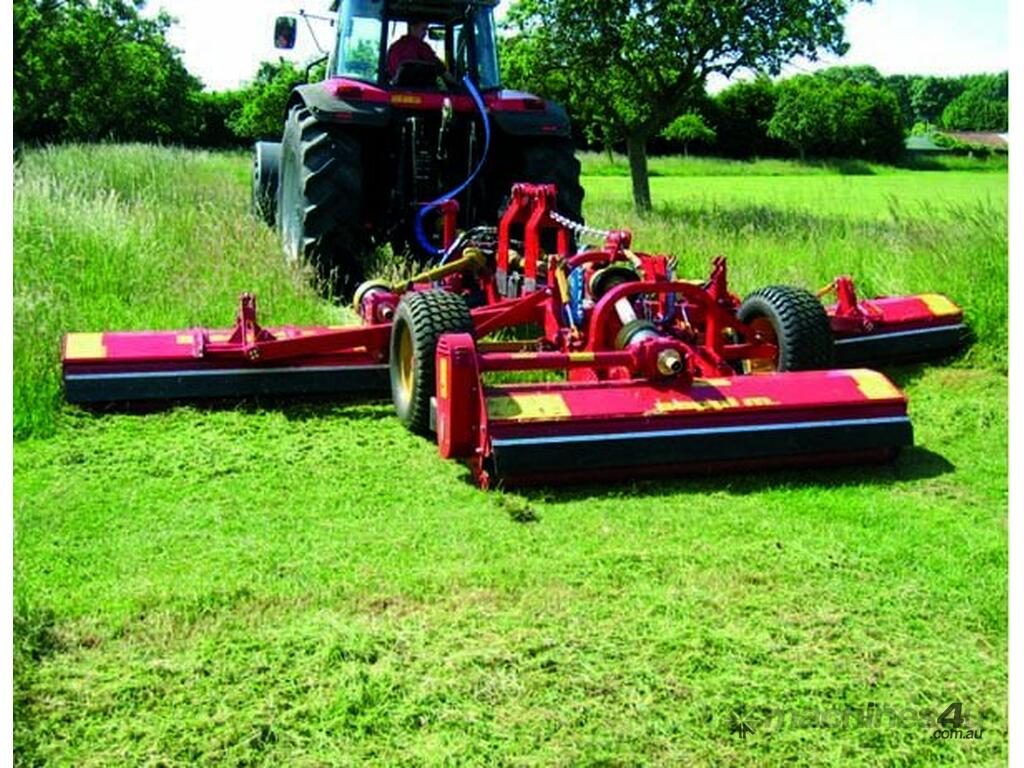

Combined mulchers reach working widths of as much as 6 m [236?]. This is ideal for large areas such as parks, airports, or uncultivated land. Three independent mulchers, trailed on a chassis, perfectly follow the contours of the ground. The width and the strength of these large mulchers make it possible to mulch at a high speed, while leaving a clean result.

The SMWA multipla comes with adjustable height control, even while the machine is working. All the settings are adjustable by remote control. Casing of all mulching heads is made of high-tensile steel. STOPSAFE™ safety system, stops the rotor when the wing mowers are lifted.

Combined machines like the SMWA multipla are made of 3 single mulchers type SMWA rev cf, liftable for transport and parking. With the STOPSAFE™ system it is possible to work with one or both wing units lifted, e.g. when working on narrow areas. The central mulcher has a 3-point linkage and can be used independently.

Available working width: 500, 600 cm [197?, 236?].

STANDARD VERSION

Mulches grass and prunings up to 5 cm [2“] Ø
Standard rotor with SMW flails
Working speed 3-10 km/h
Trailed machine with central mower and two wing mowers
Central machine, for independant use with: SMWA rev cf
Gearbox 1000 rpm
Input shaft 1 3/8” Z=6
Number belts: 3 x 4
Adjustable rear hood with rubber protection
STOPSAFE™ automatic clutch to stop the rotor when one mower is lifted from the ground
Functions of the hydraulic system with solenoid valves and remote control:
– lifting the central, left and right machine
– adjusting the height of cut
Required hydraulic connections: 1 double acting
Front protection with metal flaps
Colour: red RAL 3020

OPTIONS

PTO shaft
Rear lamp kit with anti-collison bar
Chevrons for transportation on public roads
