Scag Giant-Vac Skid Mount Truck Loader

DANDENONG, VIC

Tough jobs demand tough products and Giant-Vac skid mount truck loaders are ready to meet the challenge. Utilizing all-welded steel construction along with commercial grade quality throughout the entire line helps us maintain our time-proven reputation for rugged, durable and dependable products that are built to last and perform.

The TLS Skid Mount Truck Loader is packed with usable features the debris management professional needs. The TLS skid mount is versatile and fits into a wide variety of unique applications. It features removeable skid mounts that can be utlized in the mounting process or removed. Operators also have the option of mounting their truck loader on the optional swing-away, Hitch-Mount Accessory. Flexibility.

The TLS Loader from Scag Giant-Vac is made to adapt to your particular debris collection application.


Features
Powerful, electric-start, commercial-grade 18hp V-Twin Vanguard engine
Heavy-duty welded steel engine platform for long, reliable unit life

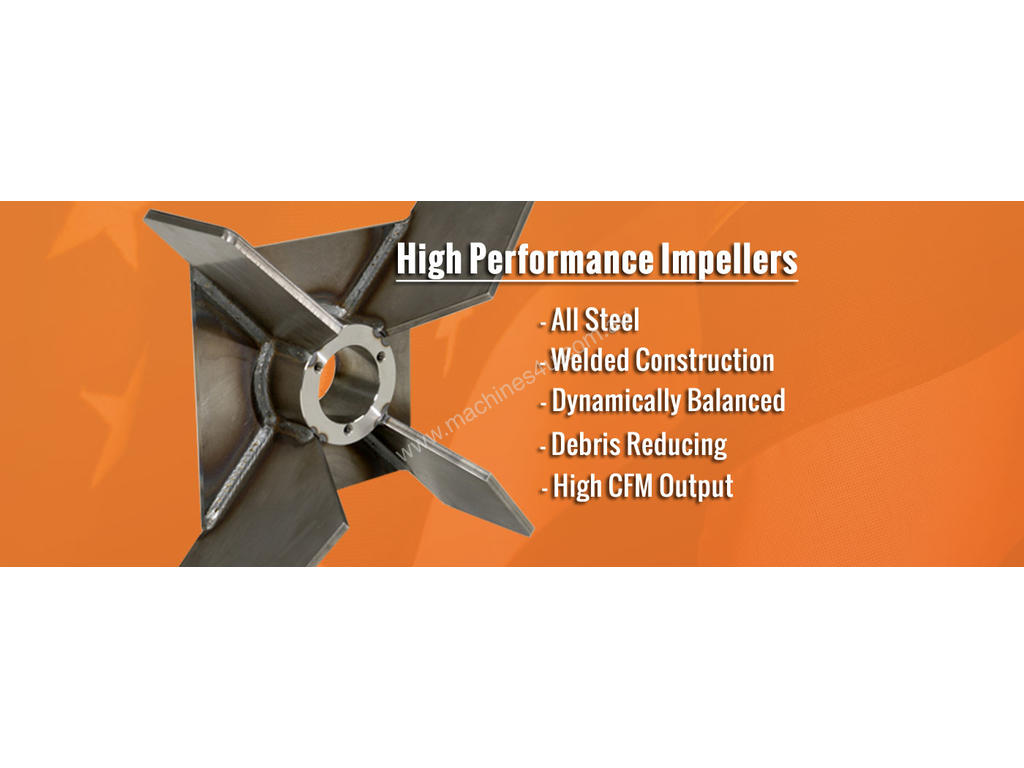

3/8? thick , 4-blade, welded, steel, dynamically balanced, high-CFM, debris reducing impeller design
Tapered impeller hub standard equipment
10 gauge welded steel blower housing
1/4? replaceable steel wear plates in the blower housing extend life and add to serviceability.
10? diameter intake hose, .045 black thermoplastic rubber, wire helix with wearstrip. 144? length.
Quick-detach feature allows the intake hose to be removed from the blower housing for storage, transport or cleaning. No tools required.
16 gauge, angle-cut intake nozzle with 7-gauge reinforcement plate at handle mount
Ergonomic, ambidextrous, one or two-handed intake handle with thick, comfort foam grip
Easy rear access to the impeller and the wear plates for cleaning and servicing
All steel, welded boom arm features nylon 66 bearing for smooth movement
Boom features a transport position with spring-loaded locking pin that keeps the boom secure during transport.
Intake nozzle can be secured to the loader for transport with an innovative transport pin system.
Hose support chain is easily height adjustable, without tools, for quick hose height changes
Commercial-grade remote throttle control for easy adjustment of engine RPM.
Skid mount features removeable skid risers with fork pockets and multiple install points to fit a wide variety of applications. Or just take them off. You have flexibility for your unique application.
Additional lift point on the output stack to make lifting your loader into place easy.
Approx. 1.75 gallon fuel tank mounted directly to the engine
Remote engine oil drain for easy and clean maintenance; easy access to the engine oil filter
Optional Truck Loader Halogen light kit available (part number: 9602)

Engine : Vanguard V-Twin electric start
Horsepower : 18 hp
Frame Construction : All steel, welded
Impeller Construction : 4-blade, 3/8? thick blades, all-steel, welded
Impeller Mounting : Tapered hub
Impeller Design : Dynamically balanced, debris reducing
Impeller Diameter : 20''
Impeller Width : 5.25''
Housing Width : 6''
Housing Wear Plates : Yes – 1/4? steel, replaceable
Hose Specifications : Quick-Detach, 10? diameter intake hose, .045 black thermoplastic rubber, wire helix with wearstrip. Length 144 ''.
CFM Output : 3,075 CFM
Discharge Tube : Metal, flex pipe. 7? diameter
Throttle Control : Commercial-grade, all steel mechanical, plastic debris cover.
Width of Loader only (hose and skids off) : 47? (total width with boom arm in transport)
Height (without Skid Attached) : 74-1/4 '''
Height (with Skid Attached) : 78-1/4 ''
Removeable Skid Dimensions (H X W x L) : 4? x 4-1/4? x 18-1/2?
Length (with hose detached) : 63? w/ discharge tube; 31? w/o discharge tube
Discharge Tube Length : 49? from elbow; 31? from engine debris gaurd
Weight : 437 lbs.
