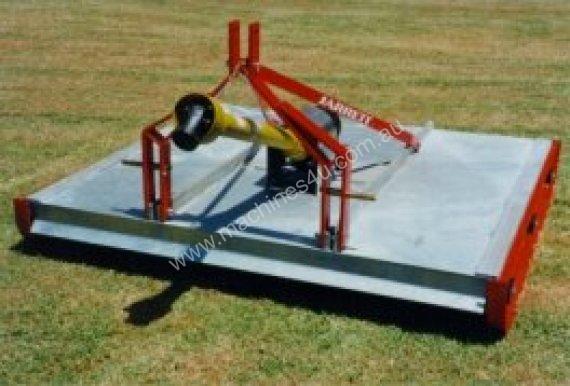

Jarrett H Series Slashers (MD/MDX)

DANDENONG, VIC

General construction
5mm thick deck sheet
12mm steel reinforced gearbox plate (17mm total thickness for gbox mounting)
Obstruction-free top deck (no debris collection points)
Obstruction-free cutting chamber
Strong A-frame with clevis hitch & Cat 1/2 lifting pins
Built-in front & rear discharge deflector plates
Adjustable skids with top gusset
Anti-windrowing (HR series)
Cutter beam
Tapered splined hub
Fabricated cutting beam for max strength
Spring steel HD Jarrett slasher blades x 2 (75x10mm step & twist)
Jarrett ‘taperlock’ blade bolts (all models except HM)

Gearbox
HM: Quality gearbox
HD, HR: Quality Jarrett Aust-made gearbox
High speed ratio 1:1.97 (HD210 1:1.47)
Rating 57kw/75hp (HDL: 34kw/45hp)

Driveshaft & clutch
Series 6 telescopic triangular shaft
2 x friction plate 200mm clutch

Options
Rubber deflector extension guards, front and/or rear
Chain guard set, front and/or rear
Solid rubber, rear wheel kit (suit 150 models)
Solid rubber, dual rear wheel kit (suit 180, 210 models)
3-blade disc base (suit HD150 & HD180 models)
Galvanised body

Specifications

Model Width Weight GBox Min pwr Mount
HM150 1.5 m 350 kg 75 hp 45 hp LH offset
HM180 1.8 m 430 kg 75 hp 55 hp Centre
HR150 1.5 m 500 kg 75 hp 45 hp LH offset
HR180 1.8 m 580 kg 75 hp 55 hp Centre
HDL150 1.5 m 350 kg 45 hp 35 hp LH offset
HD150 1.5 m 380 kg 75 hp 45 hp LH offset
HD180 1.8 m 450 kg 75 hp 55 hp Centre
HD210 2.1 m 520 kg 75 hp 65 hp Centre
